Getting started with HPE VM Explorer

Some time ago HPE announced that they would acquire Trilead, a small Swiss based company with 1 actual product being VM Explorer being a backup product for VMware and Hyper-V environments.

In this article I will do a walk-through of the installation and initial configuration and use of the product.



Installation

The software bits can be downloaded from their website https://www.trilead.com/download/.
For my article I used Build 6.1.002 being the first one rebranded with the new HPE colors…
The installation is done on a (virtualized) Windows server…

VMexplorer1

Click Next

VMexplorer2

Read the EULA and click Next

VMexplorer3

Select the wanted installation directory and click Next

VMexplorer4

Click Install

VMexplorer5

That’s it, click Finish

VMexplorer6

From here you can select (just out of curiosity) the legacy interface from Trilead or select the new HPE interface:

VMexplorer7

The Trilead application is/was a 32-bit locally installed application versus a web-based application from HPE. First time you launch the tool you will get a Webserver Settings page

VMexplorer8

Make changes as needed and click Start and Save. At least enter a password for the default ‘admin’ user account and click Change password.

VMexplorer9

Click OK for the creation of the self-signed certificates.

VMexplorer10

Click OK again.

VMexplorer11

Select your preferred language and click Save.

This ends the installation procedure.



Initial configuration

VMexplorer12

Log in with the default user account ‘admin’ and the password created before.

VMexplorer13

If you acquired a license you can enter it here or go for a trial license…

All differences in licenses (Free – Pro – Enterprise) can be found on the following URL:

https://www.trilead.com/editions/

All the basic stuff on making a backup of VM’s can be done with the free version, cool stuff like incremental backups, tape backup, file level restore, replication, task scheduling, cloud backup and so on requires the Pro version, and it is obvious that for the real enterprise stuff you need the Enterprise license… Check the website for all details.

VMexplorer14
This is a very interesting pop-up. It seems that my VM where I am running VM Explorer needs a VMXNET3 network adapter for better performance.

I did the test with a backup of a VM (see below) and noticed some performance increase but not spectacular… Backup job of 1 VM finished 2 minutes earlier…



After having entered your license you will get into the regular VM Explorer window:

VMexplorer15

GUI is fairly simple and straightforward. Some wizards are foreseen for adding servers, making backups, setting up replication and restores.



Adding servers for backup

VMexplorer16
When choosing Add a new server you get the options expexted like VMware and Hyper-V but also Cloud and Linux options are valid options.

For this article I will choose the vCenter option

VMexplorer17

Enter a name for the vcenter server and click Next

VMexplorer18

Enter the correct name and credentials and click Next

VMexplorer19

Unless you use another port click Next

VMexplorer20

Validate the test results are OK and click Next

VMexplorer21

Review the Summary and click Save

Now you see your vCenter appear in your root datacenter view

VMexplorer22

It asks now to configure the ESXi hosts underneath the vCenter server. Just right click and select Edit Server

VMexplorer23
Click Next

VMexplorer24
Enter the right credentials and click Next

VMexplorer25
Validate the ports and click Next

VMexplorer26
Validate the options and click Next

VMexplorer27
Validate the options and click Next

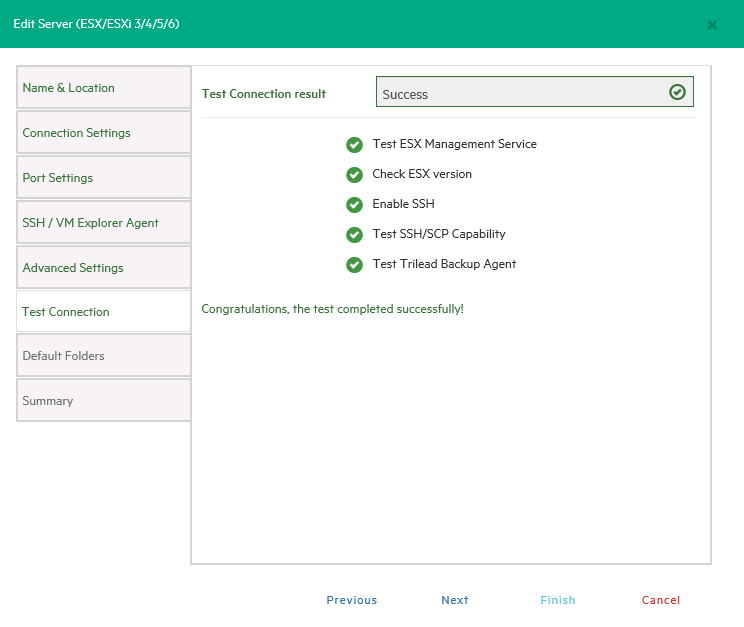

VMexplorer28
Verify that all tests complete successfully and click Next

VMexplorer29
Select the appropriate directories as a backup target and click Next

VMexplorer30
Review the Summary and click Save

Do this for all ESXi servers you want to protect.



Backup a VM

Next let’s make a backup of a VM. Run the Backup a virtual machine Wizard

VMexplorer31
Fill in the appropriate fields like Host, VM and destination directories. The other tabs give you more options like Source file & disk selection, VSS integration and backup verification…

Click OK

At the top right you can see that a task is running. By clicking Tasks and Details you can follow the progress of the backup task.

VMexplorer32

VMexplorer33

VMexplorer34

VMexplorer35

VMexplorer36

The backup job finishes successfully as expected.

Afterwards I get the option to do restore of the VM or files of the VM…

VMexplorer37



The Settings screen gives you several options like Email alerting, adding network drives and AD integration…

VMexplorer38

I hope this gives you a good overview of the installation and usage of the new HPE VM Explorer tool…

Installation is easy, usability rather high with some nice features…

Some features on my wish list at this moment are storage integration with HPE 3PAR and HPE StoreVirtual. But I assume this is just a matter of time?

There are some great video’s available on the Trilead website, check them out when you want to know everything about this product: https://www.trilead.com/videotutorials/
